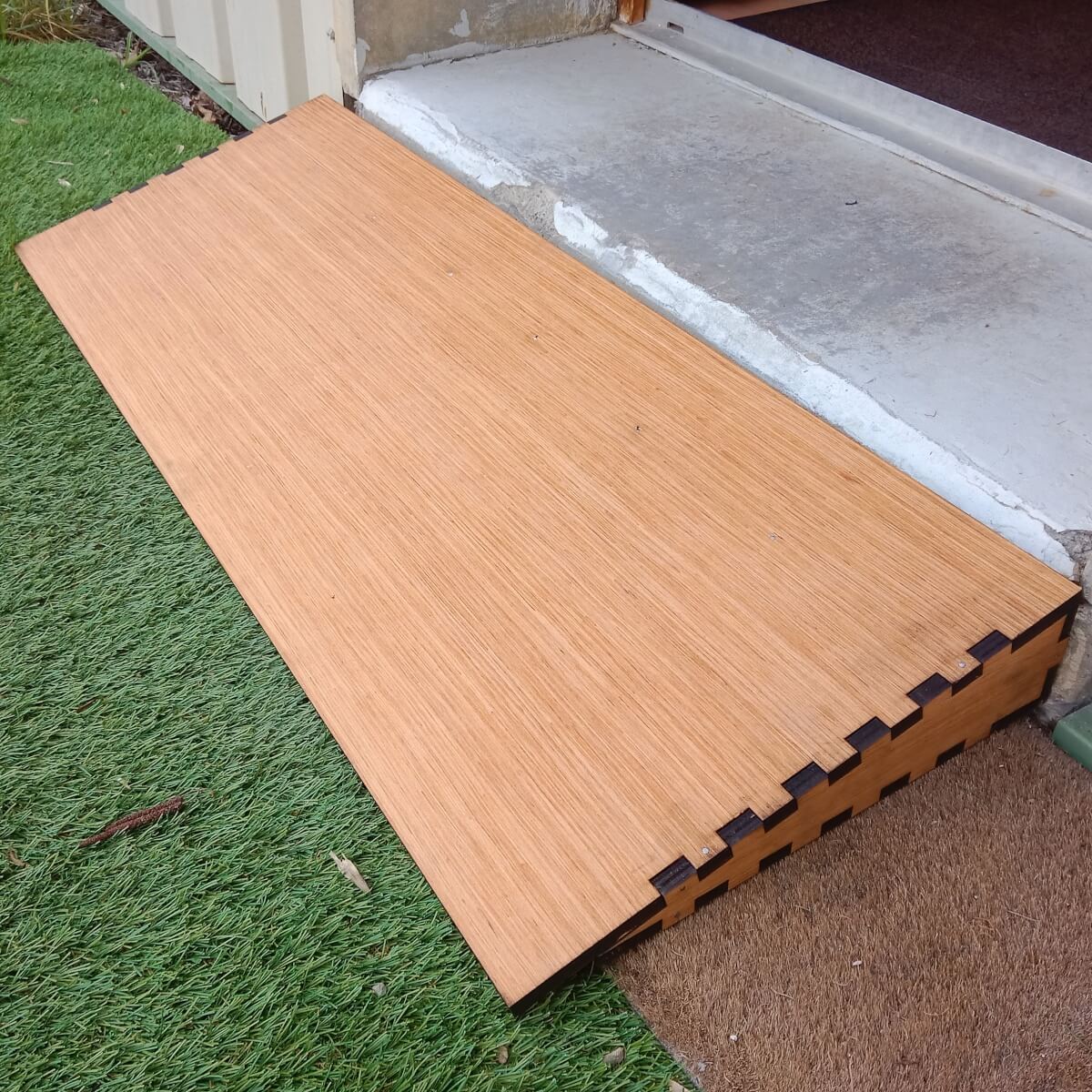

Ramp for accessibility purposes
style of the fingers
space at the start and end in multiple of normal spaces
height of the bottom lips sticking out (multiples of thickness) FingerHoleEdge only!
space below holes of FingerHoleEdge (multiples of thickness)
extra material to grind away burn marks (multiples of thickness)
width of the fingers (multiples of thickness)
extra space to allow finger move in and out (multiples of thickness)
space between fingers (multiples of thickness)
width of finger holes (multiples of thickness)
width of the ramp in mm, generally the width of the step the ramp is built for
height of the ramp in mm
depth of the ramp in mm, will influence the steepness of the ramp
Number of reinforcement triangle inside
thickness of the material (in mm) 🛈
format of resulting file 🛈
width of tabs holding the parts in place (in mm)(not supported everywhere) 🛈
Add a QR Code with link or command line to the generated output
print surrounding boxes for some structures 🛈
label the parts (where available)
print reference rectangle with given length (in mm)(zero to disable) 🛈
style for inner corners 🛈
burn correction (in mm)(bigger values for tighter fit) 🛈
Generate Download Save to URL QR Code
